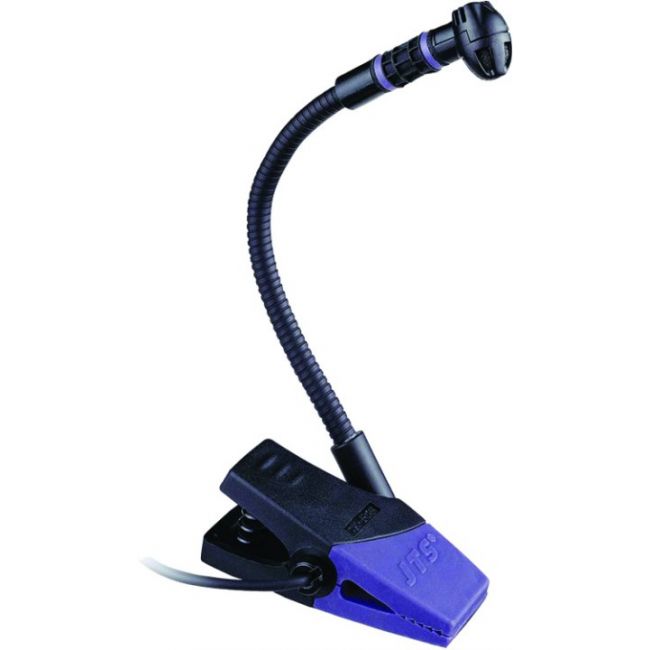

The JTS CX-508 Miniature clip on condenser microphone is designed for the miking of brass and woodwind instruments. Its flat response with a slight presence peak in the upper frequencies ensures natural and bright reproduction without coloration. ‧ The lightweight miniature profile provides minimal physical size interference for the performer. ‧ Spring type clamp with elastic grip and adjustable gooseneck for secure mounting on the horn without scratching or marring delicate instrument finishes. ‧ Clip on design allows optimal placement position thereby eliminating the use of mic stands, reducing stage clutter and set up time. ‧ Outstanding for saxophone, brass, woodwind instruments. ‧ Extended frequency response and wide dynamic range for pure and natural sound without coloration. ‧ Excellent shock-mount design for superior isolation from shock and vibrations. ‧ Flexible gooseneck together with adjustable axis allows accurate positioning. ‧ Newly added spider suspension isolates unwanted mechanical vibration effectively.
| Brand | JTS |
|---|---|
| Polar Pattern | Cardioid |
| Sensitivity | -64dB*(0.63mV)* 0dB=1V/μbar |
| Frequency Range | 50~18,000 Hz |
| Impedance | 220Ω |
| Supply Voltage | 9-52 VDC |
| Max SPL | 130 dB |
| Connector | 3P XLR(M) |
