Enhanced Proportional-Q equalisation provides both smooth contouring EQ and High-Q notches , Swept high-pass and low-pass filters per channel with illuminated LED rings ,Two overlapping high-precision swept notch filters per channel with illuminated LED rings , Channel bypass and graphic EQ range selection switches , Long-throw 45 mm oil-damped faders with dust covers for increased accuracy and reliability , Power-off bypass relays with recessed power switch to avoid accidental operation , Electronically balanced inputs and outputs on Neutrik* XLR and Phoenix* connectors , ,Rugged 3U rackmount chassis for durability in portable applications

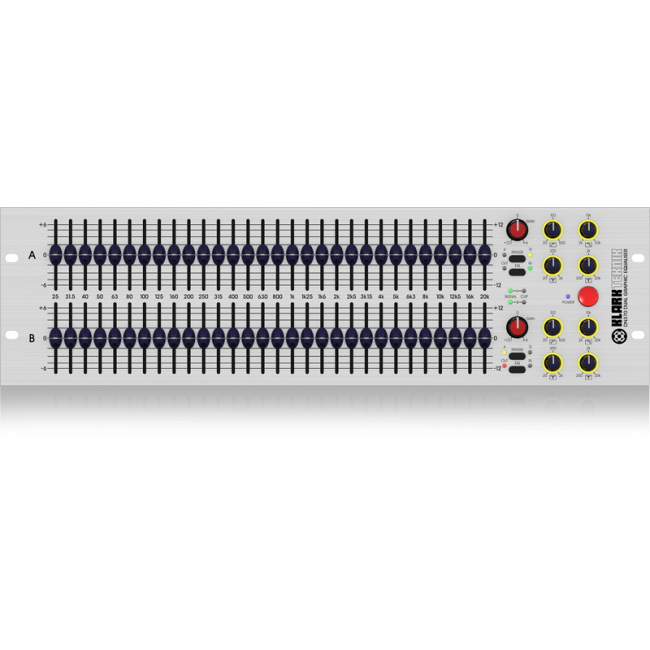

The DN370 from Klark Teknik is a dual-channel, thirty-band, third-octave graphic equalizer, with long-throw, forty-five millimeter faders, two high- and low-pass filters per channel, and two-notch filters per channel. All production units share a sonic consistency, allowing engineers all over the world to replicate their favorite settings on locally sourced machines.
Aside from the main filters, the unit sports two high- and low-pass filters per channel, and two-notch filters per channel. Low and high frequency limits can thus be set-up for the system, while the notch filters with 18db/octave slopes can be used for precise removal of problem frequencies with minimal effect on the rest of the program material.
The unit utilizes proportional-Q filtering, which varies the "Q" value depending on the depth of either the cut or boost of a particular band. This results in a "smooth" and "musical" response, while still preserving the original source material. Both inputs and outputs are balanced. The internal power supply automatically adjusts itself to various voltages, from 100 to 240VAC.
Gain control with 6dB/-infinity range and centre detent at unity gain. Allows effective muting of channel in emergencies
Scale switching provides the choice of either high fader resolution ( /-6dB) or normal ( /-12dB)
Sweepable high-pass filter with 20Hz to 500Hz range sets the lower frequency limit of the system. The control incorporates a push switch to select the filter in and out, with an illuminated ring for "at a glance" status indication
Sweepable low-pass filter with 2kHz to 20kHz range sets the upper frequency limit of the system. The control incorporates a push switch to select the filter in and out, with an illuminated ring for "at a glance" status indication. Provides optimum bandwidth control for vocal monitors and IEM systems
Two sweepable notch filters per channel, with overlapping frequency ranges of 20Hz to 2kHz, and 200Hz to 20kHz. These allow precise removal of problem frequencies with minimal effect on the rest of the program material, and fast control of "between fader" frequencies. The controls each incorporate a push switch to select the filter in and out, with an illuminated ring for "at a glance" status indication
Equalization by-pass allows easy comparison between direct and equalized signals
Earth lift switch enables signal and chassis grounds to be isolated, eliminating ground-loop problems
Electronically balanced inputs and transformer balanced outputs
Signal present LEDs and LED clip indicators assist in optimum system gain setting
Power switch, fully recessed in the "on" position to avoid accidental operation
