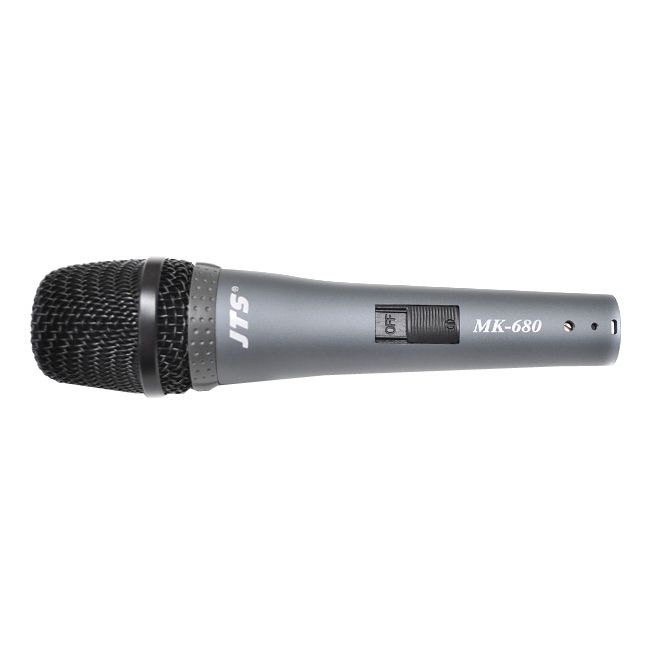

The MK-680 are designed with JTS newest capsule D-50 with ultra extended response and superior directional character. The soldering-free detachable capsule module and bomb-proof mechanical structure render the MK-680 an ideal microphone for heavy commercial applications.
| Brand | JTS |
|---|---|
| Polar Pattern Options | Supercardioid, rotationally Symmetrical about microphone axis,uniform with frequency |
| Sensitivity | -75±3dB*(0.18mV)*0dB=1V /μbar |
| Frequency Range | 50~16,500 Hz |
| Impedance | 600Ω |
| Specification | Phasing: Positive pressure on diaphragm produces positive voltage on pin2 with respect to pin3 |
| Connector | Three-pin professional audio connector (male XLR type) |
| Weight | MK-680: 350 grams (cable excluded) |
