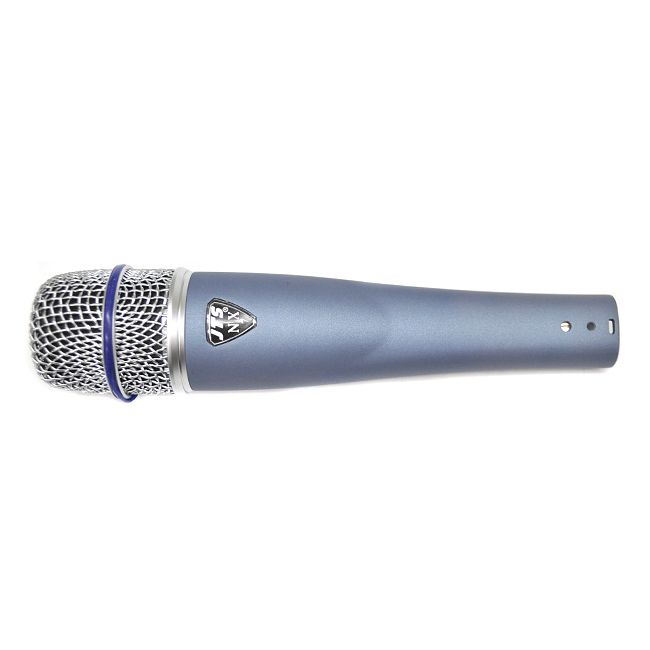

The NX-7/NX-7S are designed for optimal warmth and clarity. The outstanding pick-up pattern and sound quality make NX-7/NX-7S ideal for vocal,drums, guitar amplifiers and other instruments. The dynamic shock mount keeps noise to a remarkable low level. The top-flat grille allows mic. cartridge closer to a sound source to maximize low frequency proximity effect.
| Brand | JTS |
|---|---|
| Polar Pattern Options | Cardioid,rotationally symmetrical about microphone axis, uniform with frequency |
| Sensitivity | -72dB*(0.25mV)*0dB=1V/μbar |
| Frequency Range | 50~16,500 Hz |
| Impedance | 600Ω |
| Specification | Phasing: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 |
| Connector | Three-pin professional audio connector (male XLR type) |
| Weight | 235 grams (8.3 oz) |
